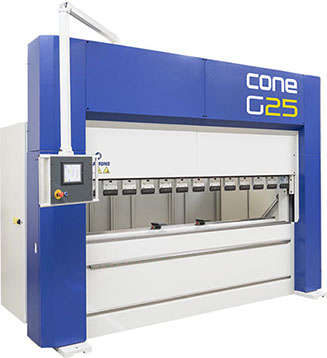

G25 Press Brake

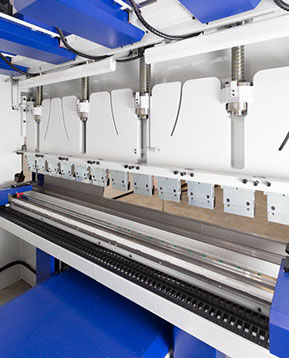

The G25 features an O-frame just like all the G-Series press brakes. It deflects less than a conventional C-frame while still remaining lighter. The G25 has four servo driven ball screws which crown and bend simultaneously. Due to the servos’ high accuracy, the upper beam can be CNC deflected to “follow” the lower beam seamlessly. This is the unique system that gives you a great bending result. This is CoastOne’s unique direct crowning.

In addition to servo technology’s superior kinematic, it also saves the environment. The lack of hydraulic oil also eliminates expensive oil changes, spare parts, valves and maintenance expenses common to hydraulic press brakes.


  • Wila (US style) tooling

  • Promecam (European style) tooling

  • Lazersafe safety device

  • Cnc-controlled sheet followers (2 pcs)

  • Z1-Z2 axis

  • Cone TC15 control with 15” screen
